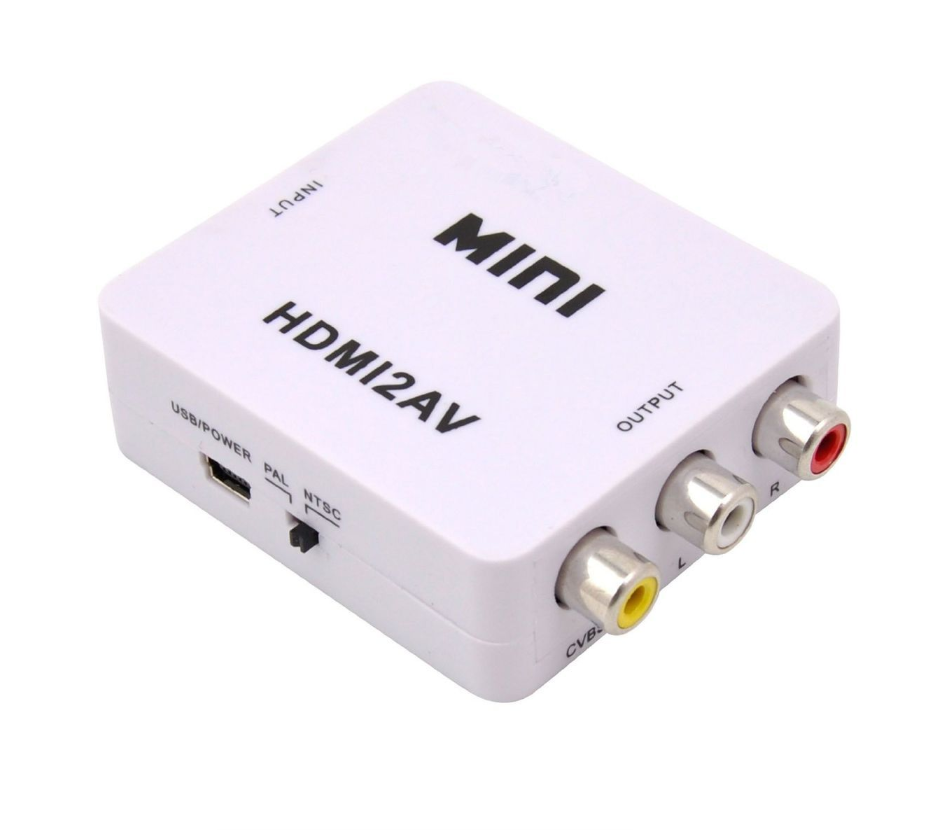

HDMI to AV 3RCA CVBs Composite Video Audio Converter Adapter
The HDMI to RCA/AV signal converter converts HDMI video signal or audio signal to AV(CVBS) composite video signal and the FL/FR stereo audio signals, supporting DVI system sideline signals. It helps users to convert high quality of HDMI video signal into normal CVBS signal (standard-definition 480i,576i), can play on TV,VHS VCR, DVD recorders, etc., supporting NTSC and PAL.
Features:
– No need to install drivers, plug and play.
– Portable and flexible.
– Low power, no power adaptor.
– Support NTSC and PAL two standard TV formats output.
– Compatible with HDMI – 3
Specifications:

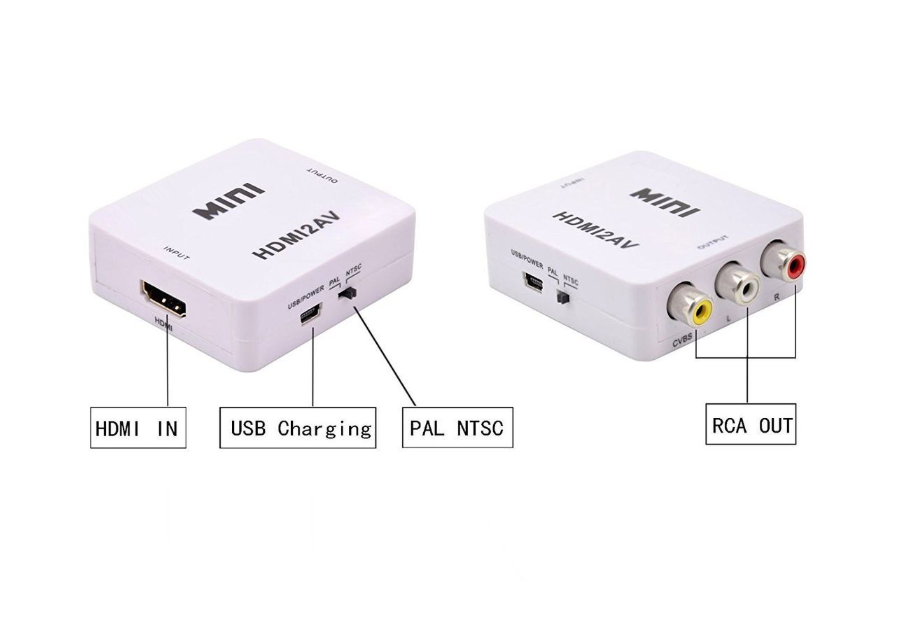

– Input port :1 x HDMI
– Output ports:1 x RCA (yellow, white and red)
– Dimension(mm):66(D) x 55(W) x 20(H)
– Weight(g): 40
– CVBS output: PAL and NTSC
– HDMI Input resolutions: 720x480i@50/60HZ, 720x480p@50/60HZ, 640x480p@60HZ,800*600p@60HZ, 1024x768p@60HZ, 1280x1024p@60HZ, 1280x720i@60HZ, 1280x960p@60HZ, 1280x720i@50/60HZ, 1280x720p@50/60HZ, 1360x768p@60HZ, 1920x1080i@50/60HZ, 1920x1080p@50/60HZ.
Package Contents:
Main unit(HDMI to RCA/AV Converter)
What’s in the box
1 x Video Cable
