Description

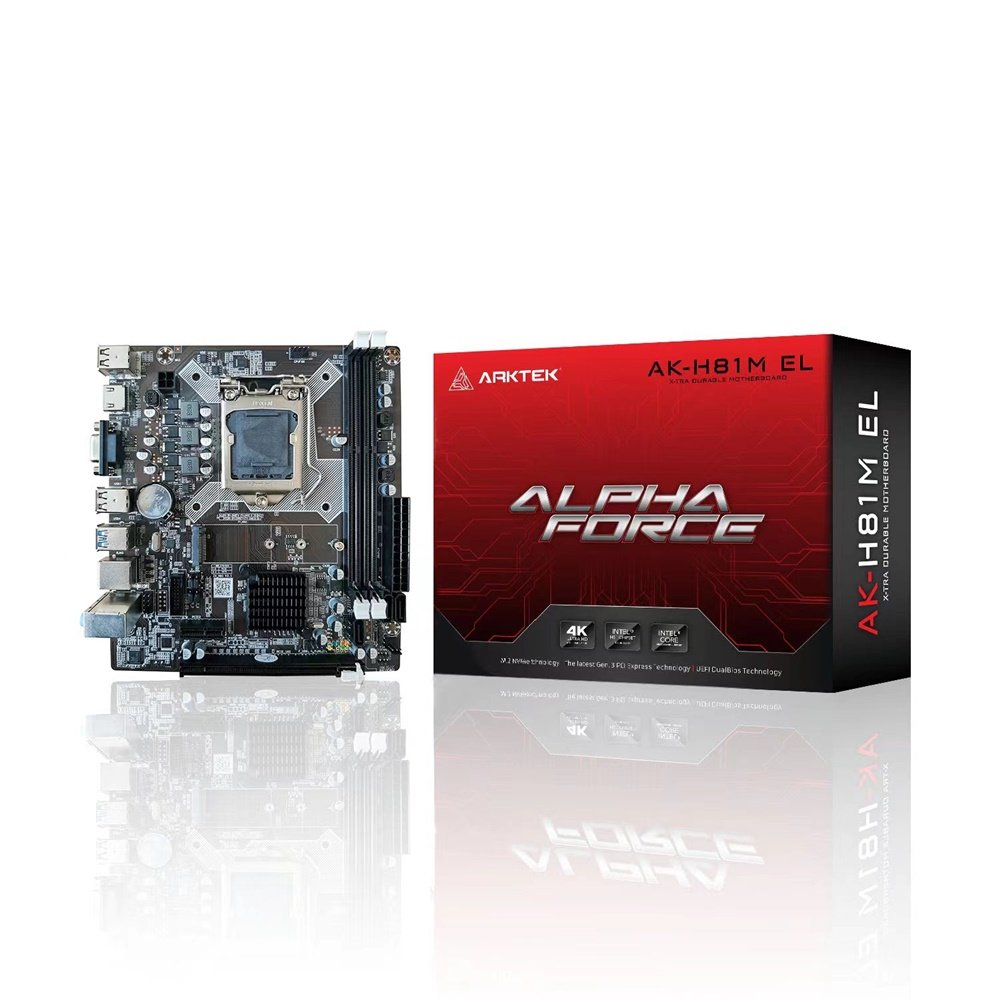

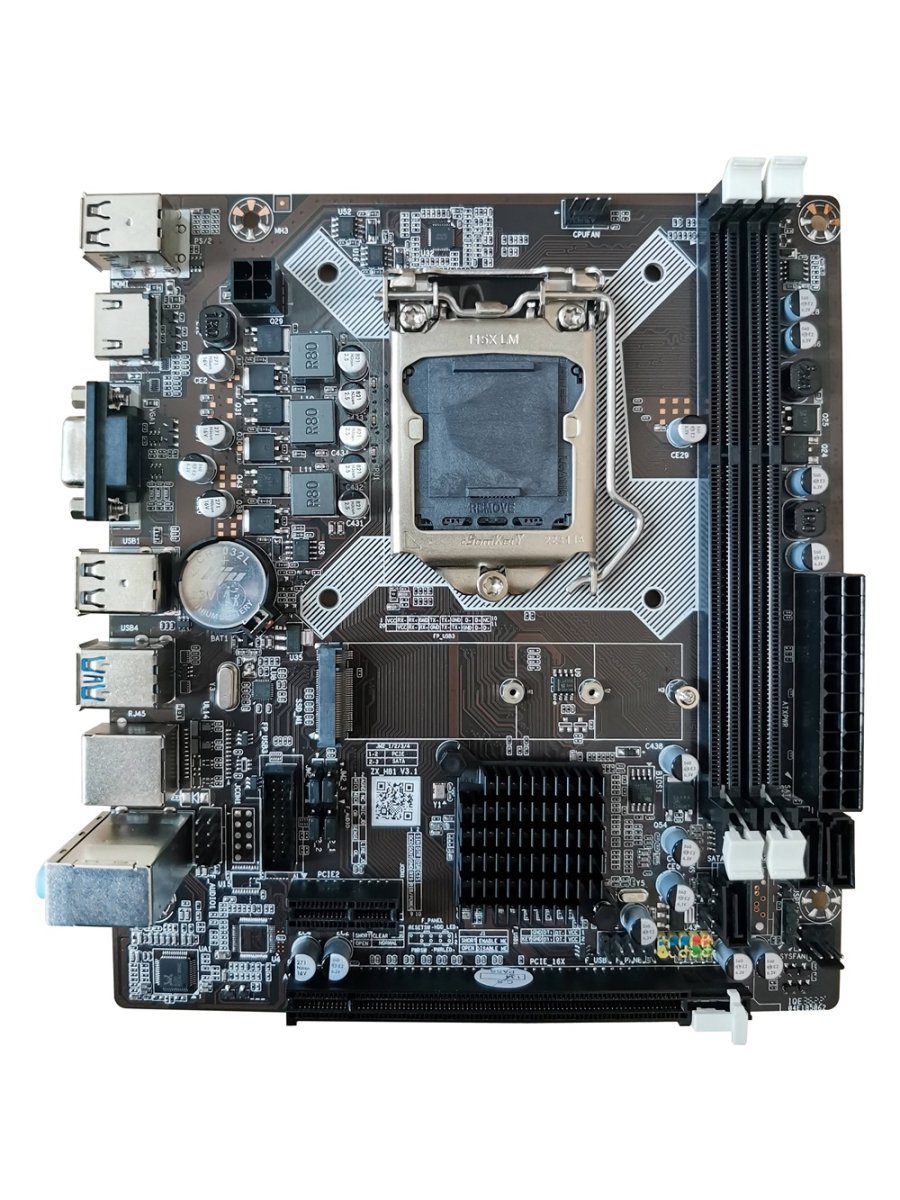

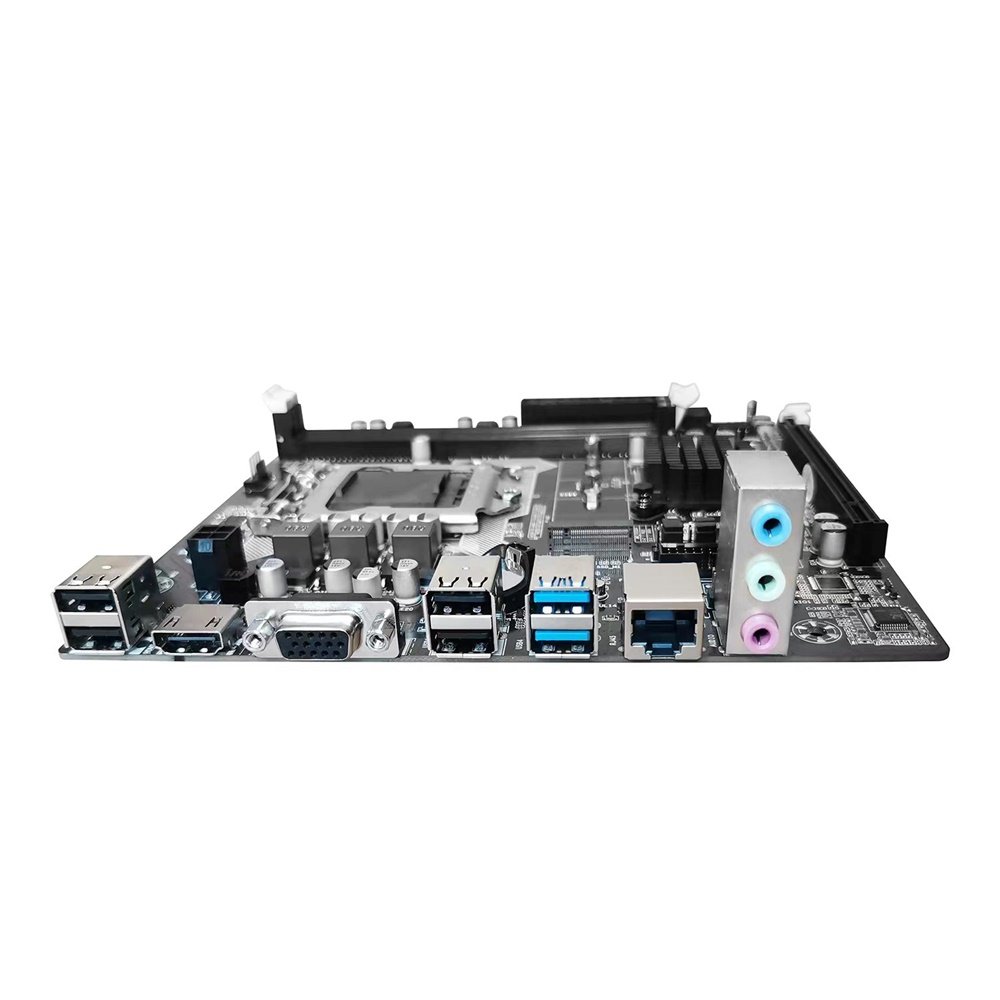

Arktek Intel H81 Motherboard

CPU Support: Support Intel® Core i7/i5/i3/Pentium®/ Celeron® processors in the LGA1150package.

Support Intel 4th and 5th generation multi-core processors

Chipset: Intel H81 Chipset

On-Board Graphics: Integrated Graphics Processor

Memory: Dual Channel DDR3 1066/1333/1600MHz, Supports non-ECC, un-buffered memory

DIMM: 2 x Memory Slots (Max. up to 8GB each)

LAN: Onboard Realtek® RTL8105E/8111E Gigabit 100/1000 Mbps (Optional)

Audio: Onboard Realtek® 662 6-channel HD Audio Codec

Front Panel audio-out,mic-in jack

SATA: 3 x SATA, 1xM.2 supports NVME+NGFF

ON-Board Pinheaders /Connectors:

1 x USB 2.0 pinheader supports additional 2 USB 2.0 ports

1 x Front Panel Audio pinheader

Slots: 1 x PCI Express x16 slot

BIOS: UEFI BIOS

Form Factor: Micro-ATX (19 X 17 cm)

Mounting: 6 mounting holes
